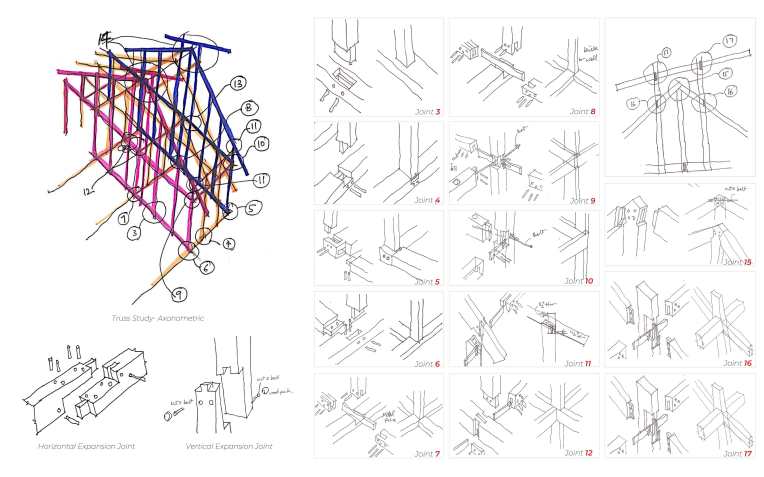

Joinery details documenting structural junction of Pott House’s indigenous hardwood timber truss system — drawn by hand and directly for the carpenter on site. Some joints draw from Japanese wood joinery traditions, with the rest developed collaboratively with the carpenter, all avoiding metal hardware. Numbered and colour-coded on the axonometric truss study for clarity, these details embody the project’s philosophy of honest construction — where joints are left exposed rather than concealed, allowing the material and its connections to speak for themselves. Structure here is not hidden, it is the architecture.

Credits
Drawn By Kiron Cheerla
